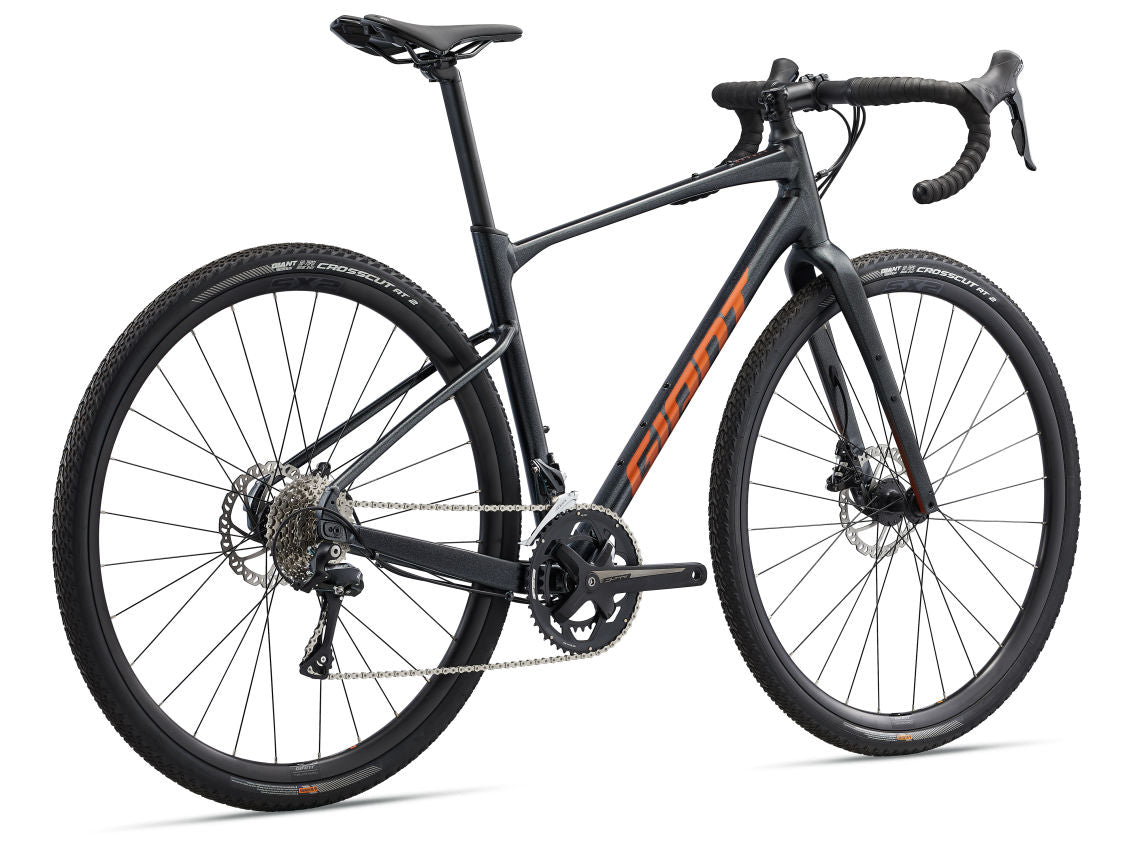

2022 Giant Revolt 2
2022 Giant Revolt 2
Couldn't load pickup availability
RIDE ROADS, GRAVEL OR DIRT WITH THIS ALL-NEW ALUMINIUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TYRE CLEARANCE.
KEY PERFORMANCE FACTORS
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Sizes | XS, S, M, M/L, L, XL |
| Colours | Black Diamond |
| Frame | ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Cork tape with gel |
| Stem | Giant Sport Alloy, 7-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Approach |
| Pedals | N/A |
| Shifters | Shimano Sora, 2x9 |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora, long cage |
| Brakes | Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Sora |
| Cassette | Shimano HG400, 11x34 |
| Chain | KMC X9 |
| Crankset | FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Cartridge |
| Rims | Giant S-X2 Disc wheelset |
| Hubs | Giant S-X2 Disc wheelset |
| Spokes | Giant S-X2 Disc wheelset |
| Tires | Giant CrossCut AT 2, 700x38c, tubeless |
| Extras | Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
